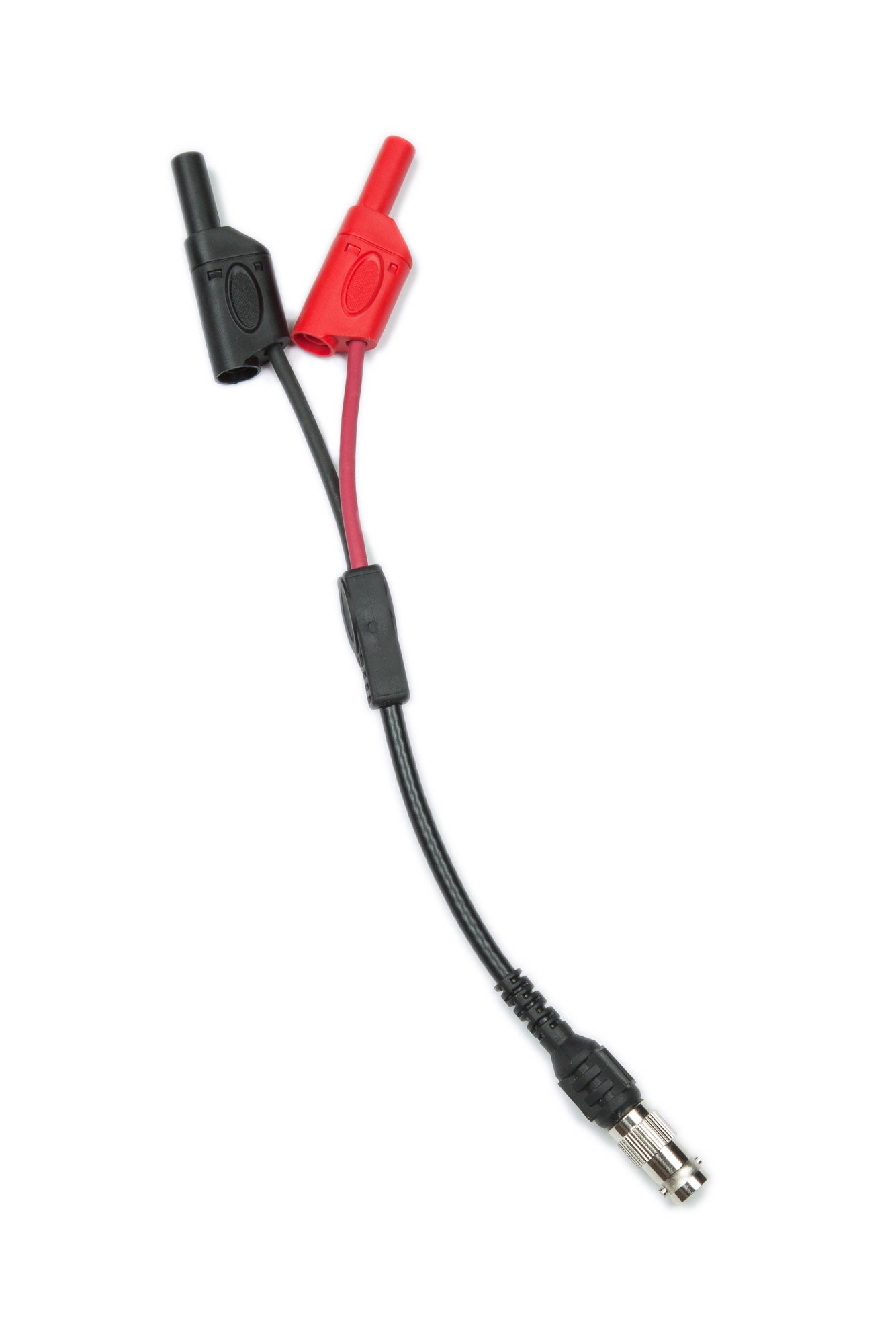

can i use 08-86-f for high voltage kv lead. (AES Flexible Adapter: Banana-plugs to BNC (Female))

Answer

carlos

Nov 27, 2013 - 03:39 PM

Yes you can use the AES Flexible Adapter to connect a Pico Secondary to the Verus.

AESwave can customize a Pico Secondary so it will connect directly to the Verus/Modis/VantagePro scopes. We would remove the BNC from the lead and replace with banana plugs.

But bear in mind that the attenuation on the Pico lead won't match the set up in the Verus Pro. While it will work, the scaling could be off. You can certainly use it to compare one cylinder to another but don't use it to compare with other waveforms made from different setups.

Source: HC
