does it show wave form on graph meter
Status:
Open Nov 07, 2012 - 07:29 PM
2answers
Answers
Nov 08, 2012 - 08:10 AM
Technically the answer is yes. If it works with a DMM it works with a scope. The real question is: How well does it work with a lab scope? Meaning, does the probe have a good frequency response for the type of testing you want to do? Since this probe is going to be used for higher amp draws, my expection is that it will work fine. On the other hand, if we were discussing a low amp probe or you wanted to do engineering level analysis charactoristics such as fidelity, frequency response and noise immunity become paramount.
Nov 08, 2012 - 09:42 AM
Yes, this current probe will display a waveform on a graph meter or Labscope.
Answer this question
View More Product Details

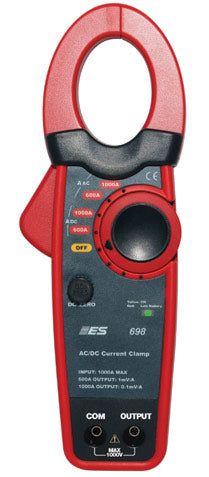

ESI 698 – 1000 Amp DC/AC Current Clamp Probe
Multimeter & Scope Compatible | 0–1000A AC/DC | 2.125" Jaw Opening | Zero Adjust | Carry Case Included
The ESI 698 is a high-capacity current clamp probe designed to measure both AC and DC current up to 1000 amps. It connects directly to digital multimeters, lab scopes, or graphing met...
