Answer
Sep 06, 2022 - 01:38 PM

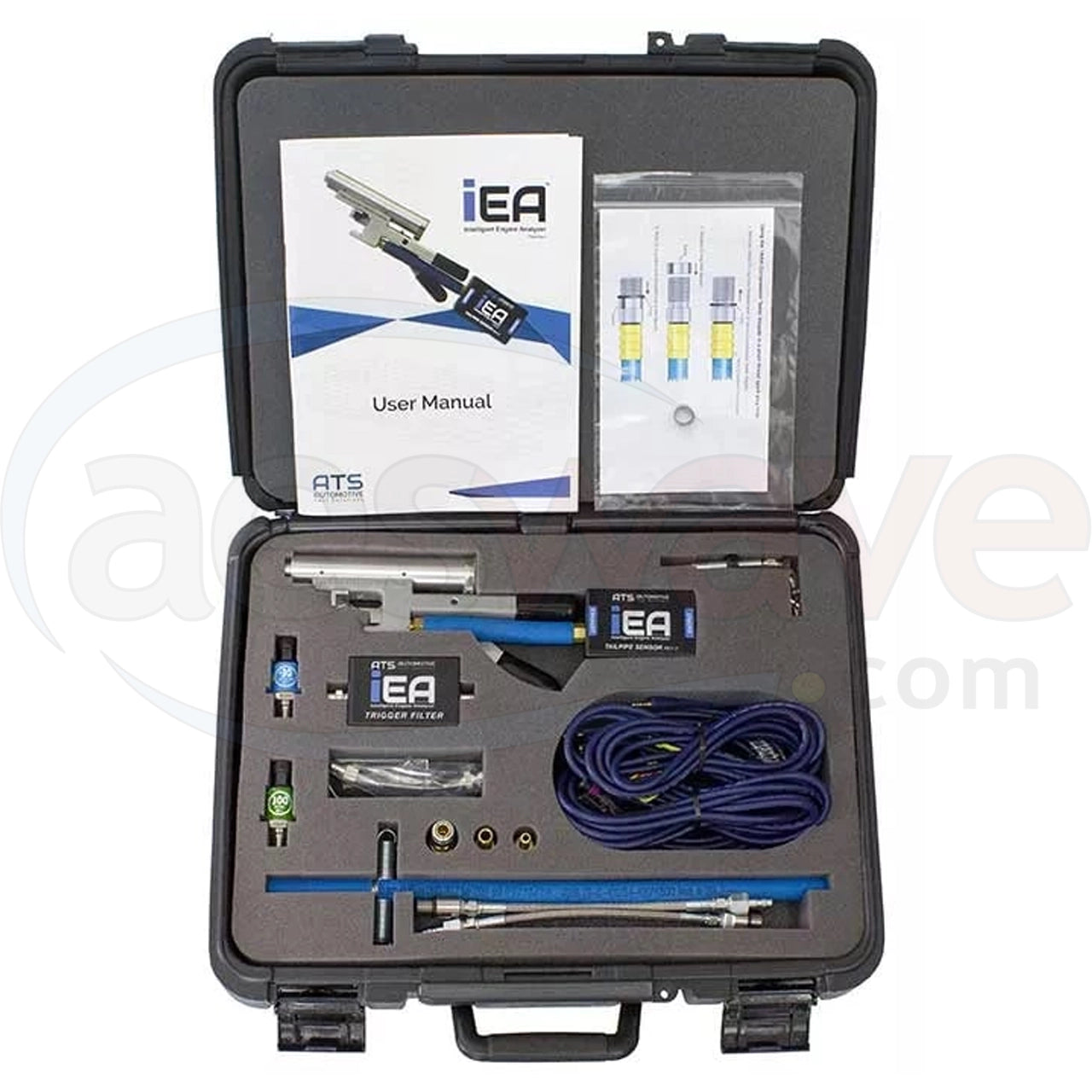

The Intelligent Engine Anaylzer software is only compatible with the eScope Elite scope and software.
The transducers could be used with the Snap On scope, however, there is no way for the Snap On to convert the voltage into the correct PSI. If used with the Snap On pressure presets, the values will be incorrect. You would need to capture the waveform in voltage, and then compare the voltage to the calibration chart to get a pressure value.
If you do not need to know the absolute pressure value, this would not be an issue.
If you are interested, there is a transducer package available without the software.
https://www.aeswave.com/Pressure-Pro-Pressure-Transducer-Kit-p9865.html
The transducers could be used with the Snap On scope, however, there is no way for the Snap On to convert the voltage into the correct PSI. If used with the Snap On pressure presets, the values will be incorrect. You would need to capture the waveform in voltage, and then compare the voltage to the calibration chart to get a pressure value.
If you do not need to know the absolute pressure value, this would not be an issue.
If you are interested, there is a transducer package available without the software.
https://www.aeswave.com/Pressure-Pro-Pressure-Transducer-Kit-p9865.html
