AESwaveAnswer
Dec 11, 2015 - 04:35 PM
To connect Banana Plugs to the uScope: AES# 08-87-bs.
Use to connect your Verus accessories to the uScope.
To connect BNC to the uScope: AES# 08-87-bnc
Source: Staff
what do i need to connect to uscope with banana plug or is there a better option?
i have uscope with banana plugs and a verus so they share leads, i would like to use on both. this question also goes with the 20:1
Status:
Open Dec 06, 2015 - 05:24 PM
1answer
View More Product Details

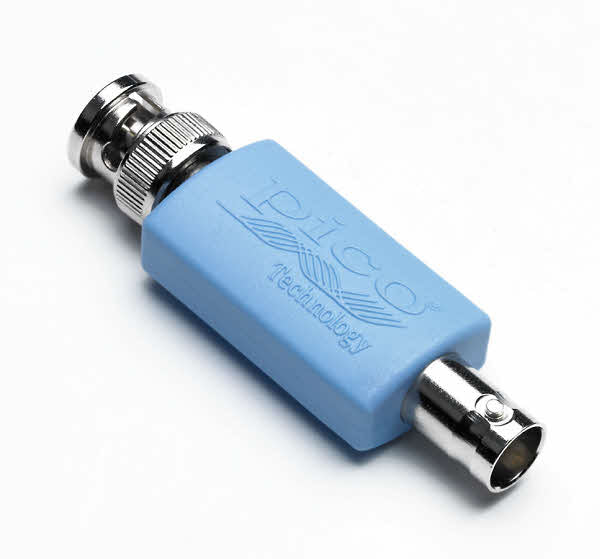

High bandwidth 10:1 attenuator
With high bandwidth and fault-protection, the 10:1 attenuator has been designed to allow fuel injector and primary ignition waveforms to be measured using PicoScope oscilloscopes.
The Pico TA197 is a passive 10:1 attenuator. This means that a 10 V signal at its input will appear as a 1 V signal... See More
Find out more...
The Pico TA197 is a passive 10:1 attenuator. This means that a 10 V signal at its input will appear as a 1 V signal... See More
